810nm IP65 Waterproof DC12V Red & Infrared Rigid LED Strip – Imaging Systems & Optical Projects, SMD2835/36 LEDs, SMD5050/30 LEDs, 50cm/10 Pack
810nm IP65 Waterproof DC12V Red & Infrared Rigid LED Strip – Imaging Systems & Optical Projects, SMD2835/36 LEDs, SMD5050/30 LEDs, 50cm/10 Pack
LED Density Illustration
About this item

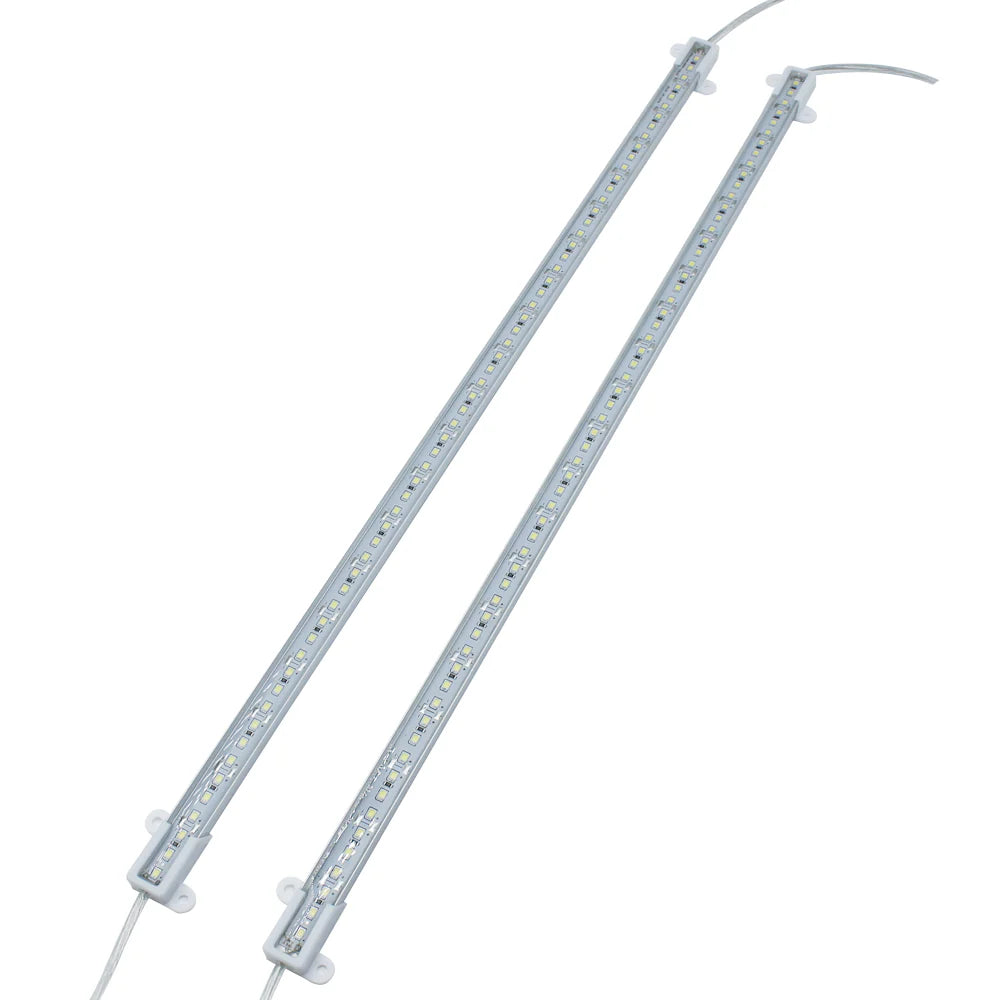

- Waterproof rigid LED strip designed for 810nm infrared light output.
- Suitable for imaging systems, optical projects, inspection lighting, and infrared experiment setups.
- Available in SMD2835 with 36 LEDs or SMD5050 with 30 LEDs per 50cm strip.
- Operates on DC 12V with a 120° beam angle.
-
IP65 waterproof silicone-covered surface, suitable for indoor and protected outdoor installations.

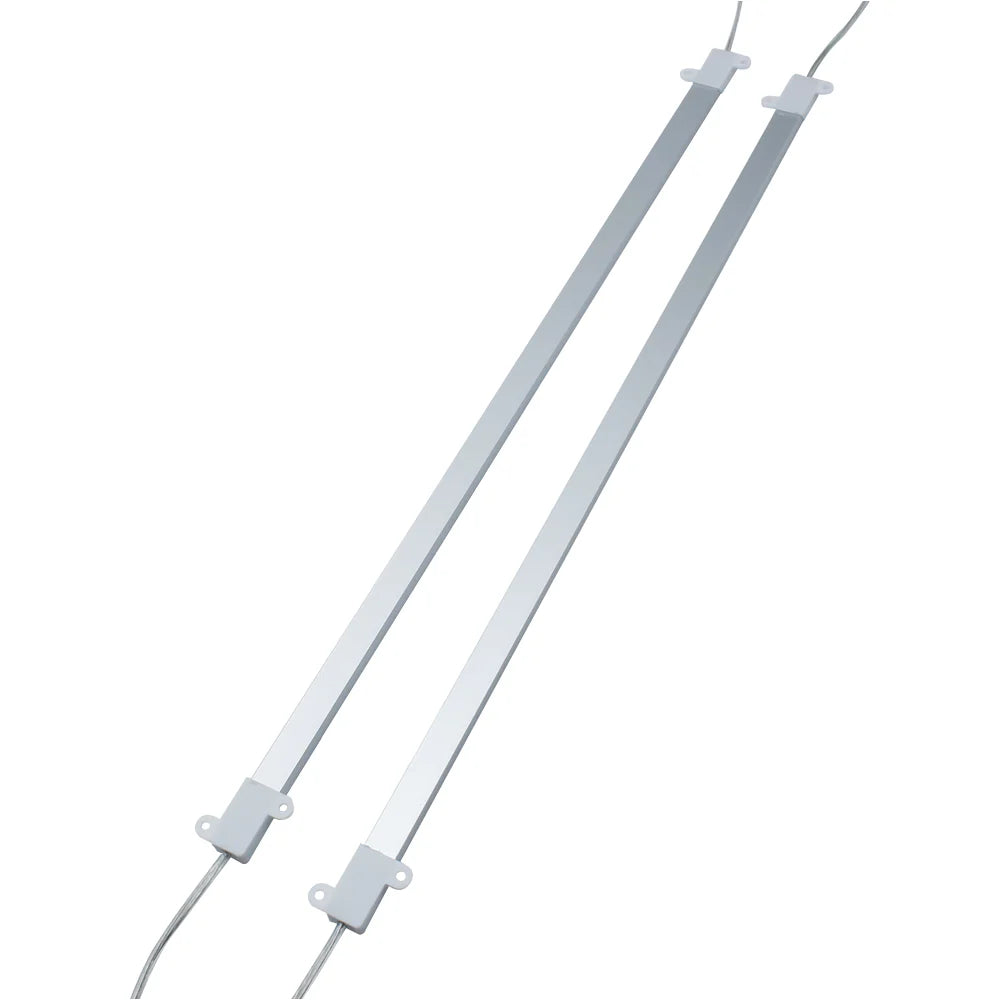

- Rigid aluminum PCB provides stable mounting and improved heat dissipation.
Technical Specification
| Specification |
Value |
| Wavelength |
810nm Infrared |
| Voltage |
12V DC |
| Beam Angle |
120° |
| Dimming |
Yes |
| LED Type |
SMD2835 / SMD5050 |
| LED Quantity |
SMD2835: 36 LEDs/pc; SMD5050: 30 LEDs/pc |
| Length |
500 mm / 50cm per piece |
| Pack |
10 Pack |
| Protection Grade |
Waterproof IP65 |
| PCB Type |
Rigid aluminum PCB |
| Finish Color |
Silver |
Package Included
| Version |
Package Included |
| SMD2835 / 36 LEDs / 810nm |
10 × 50cm rigid LED strips, terminal blocks included |
| SMD5050 / 30 LEDs / 810nm |
10 × 50cm rigid LED strips, terminal blocks included |
Order & Logistics
-
Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
-
Packing: Cardboard box.
-
Shipping: From local warehouse if available, or from HQ by standard or express shipping.
Other Features
| Feature |
Details |
| Mounting |
Rigid strip body can be fixed with suitable mounting accessories |

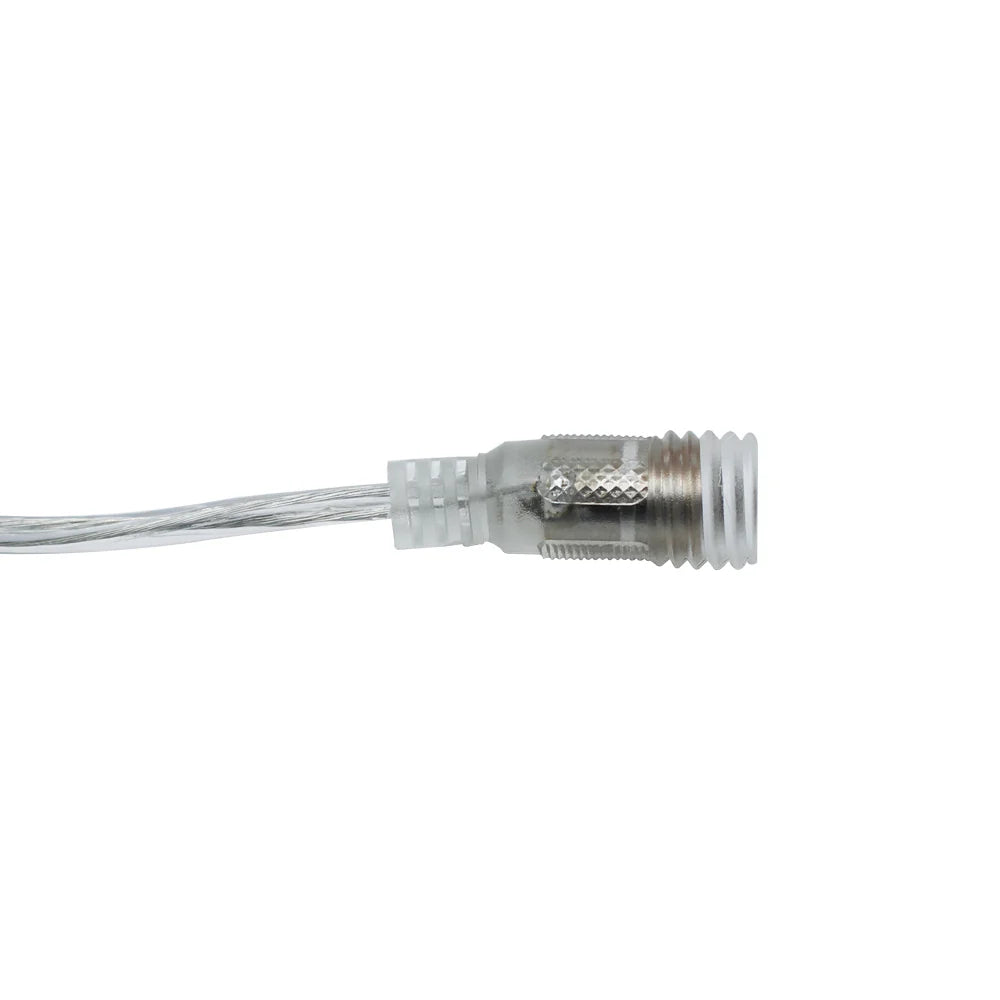

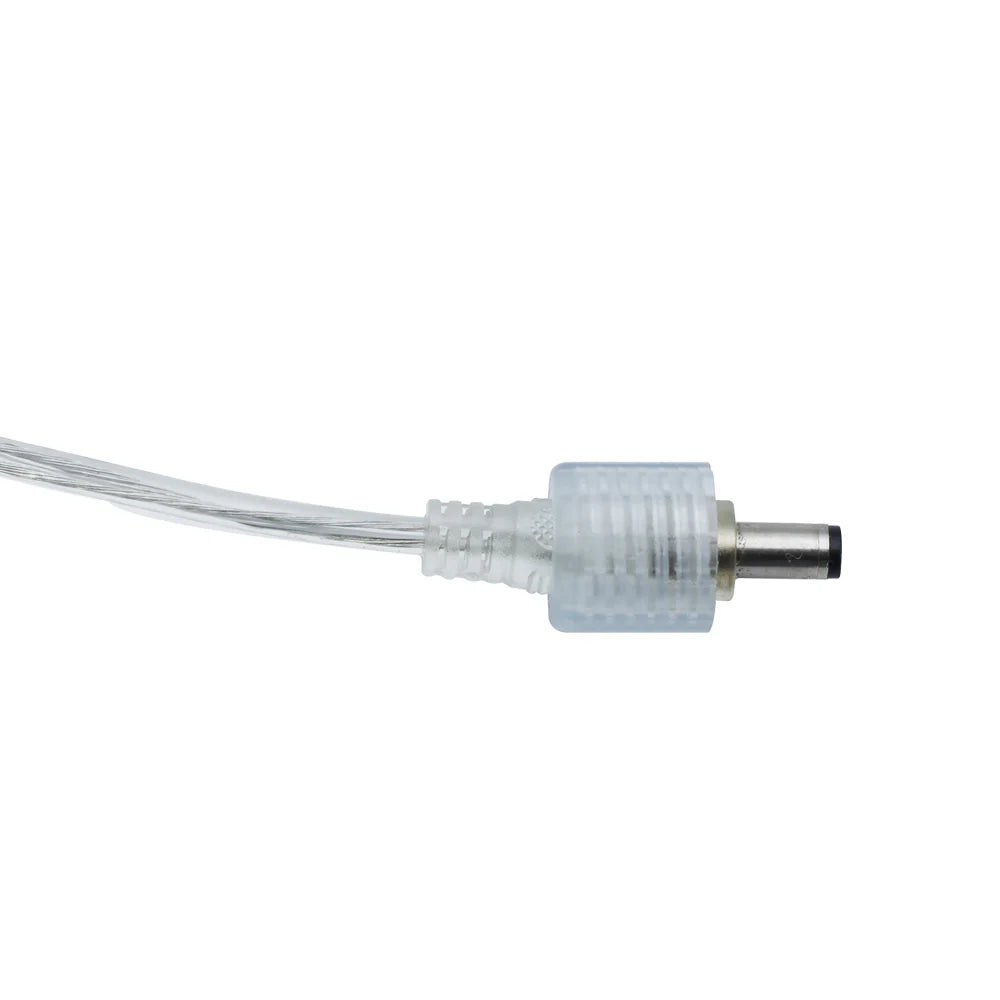

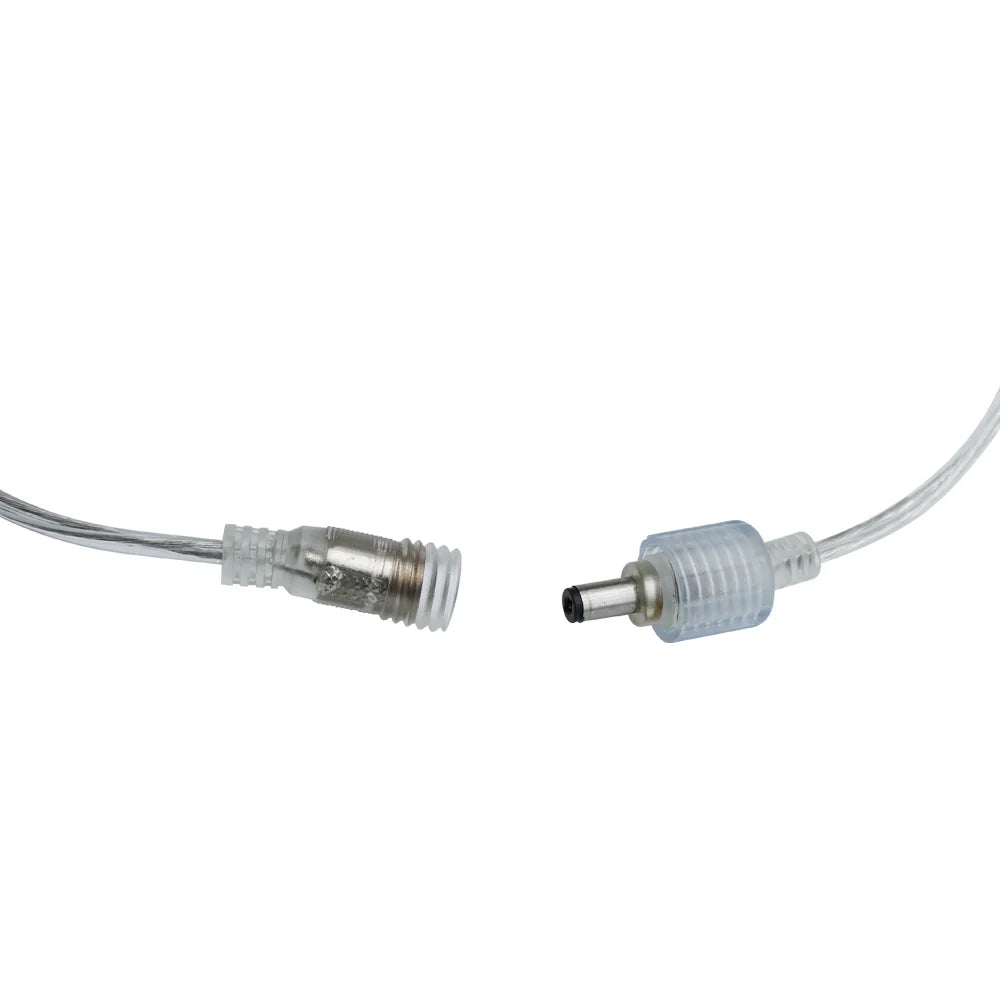

| Connector |
DC connector / terminal connection depending on version |
| Polarity |
V+ and V-; polarity sensitive |
| Application Type |
Imaging systems, optical projects, inspection lighting, infrared project lighting |
Type of LED & Waterproof IP Grade
-

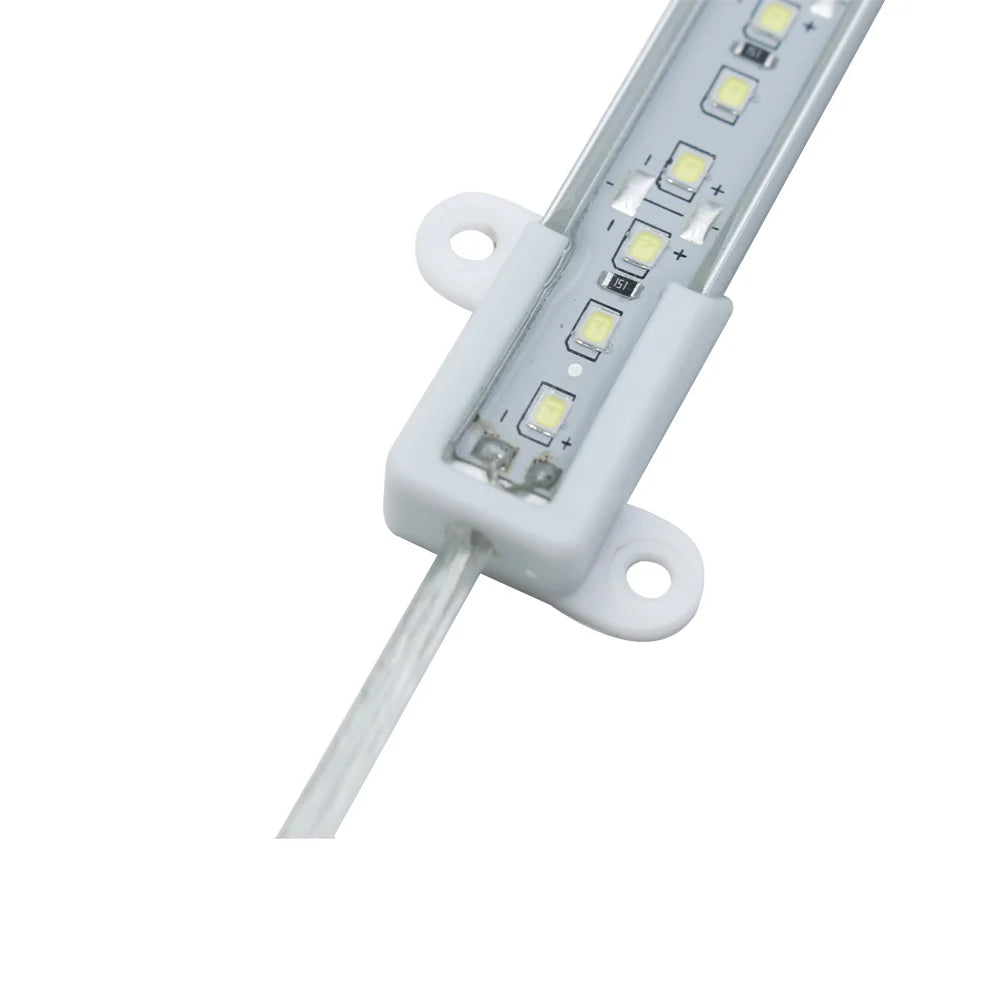

SMD2835: 36 LEDs per 50cm strip, suitable for compact infrared lighting applications.
-

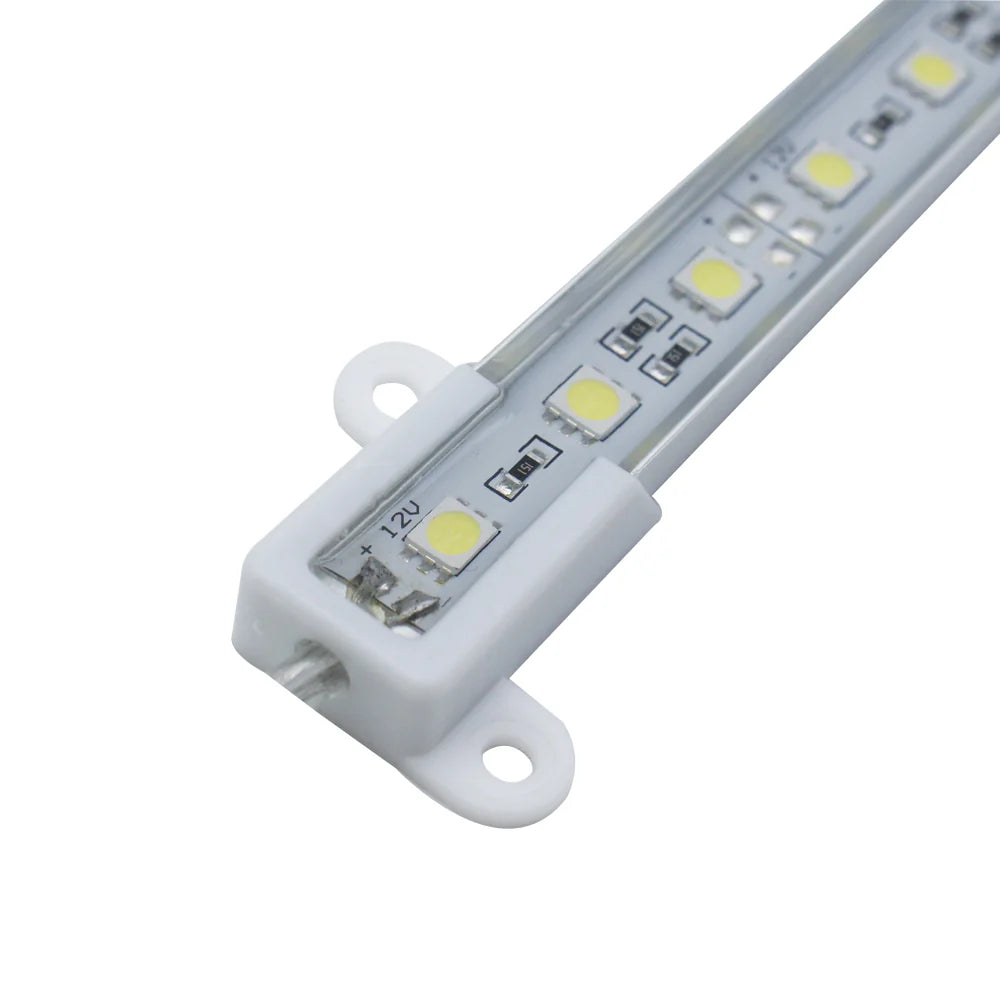

SMD5050: 30 LEDs per 50cm strip, suitable for higher-output infrared lighting applications.
-
810nm Infrared: Suitable for imaging support, optical testing, inspection lighting, and infrared project setups.
-
Waterproof IP65: Surface covered with clear silicone to help protect against sprayed water from all directions.
Installation Tips
- Always disconnect the power supply before connecting LED strips.
- Do not bend rigid strips to avoid damaging the PCB.
- Do not connect LED strips directly to 120V AC power.
- Use a compatible DC12V power supply.
- Apply power to test LED strips before final mounting.
Applications
- Imaging system lighting
- Optical project illumination
- Infrared inspection setups
- Machine vision support lighting
- Research and testing projects
- Protected indoor or semi-outdoor infrared lighting applications
