CDG-US Curved Reflector 12W (3″) Deep Anti-Glare Full Spectrum LED Downlight | 90–140V | 4/12 Pack | 5CCT Adjustable | 24° Beam | White Housing | CRI>97 | Architectural Recessed Lighting
About this item
- Architectural Recessed Design: Designed for modern architectural recessed lighting, this downlight integrates cleanly into the ceiling while delivering a refined, low-profile appearance for commercial, hospitality, retail, and residential interiors.
- High CRI Performance: Full-spectrum COB LED technology with CRI>97 provides accurate color rendering, natural visual clarity, and improved color fidelity for spaces where premium light quality matters.
- Deep Anti-glare Optical System: The deeply recessed light source helps reduce direct glare and improves visual comfort, making it suitable for accent lighting, display lighting, and high-end interior applications.

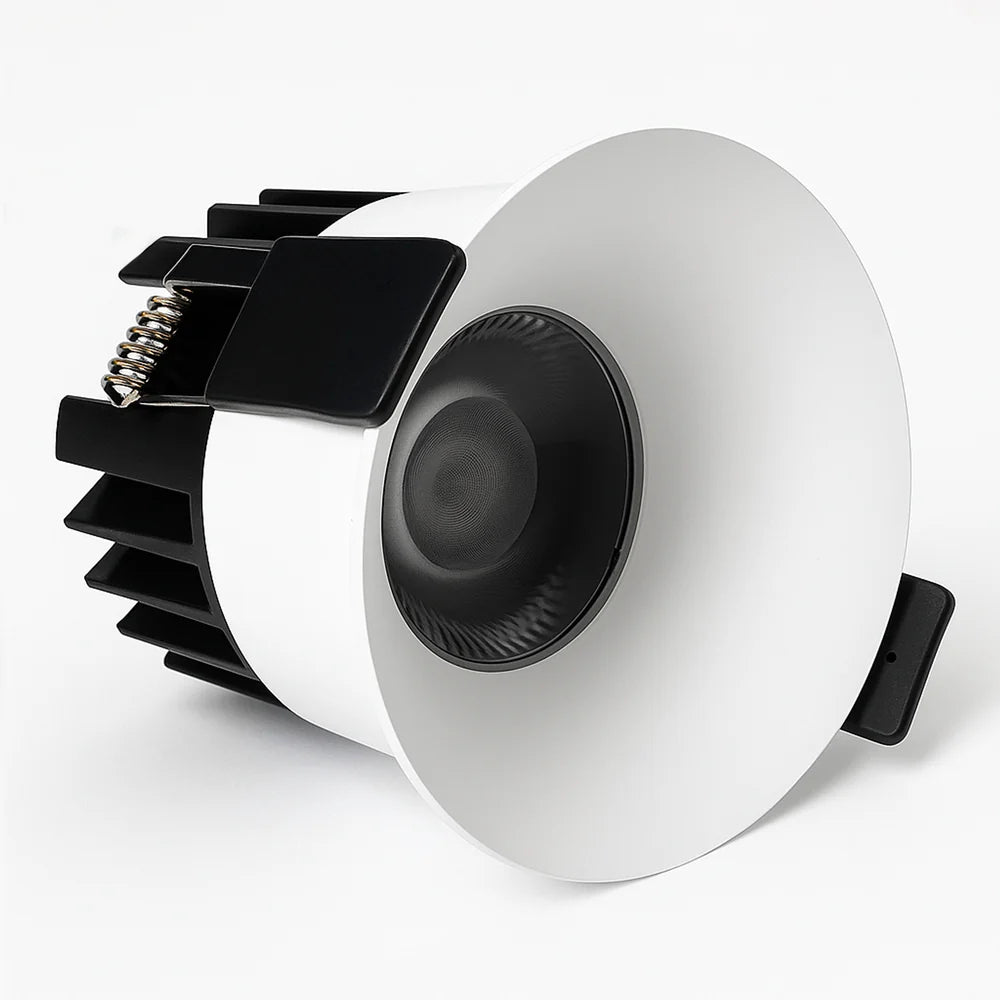

- Reflector Geometry Design: The curved inner-wall reflector cup optimizes light distribution and beam control, helping create a clean 24° beam with focused illumination and reduced light spill.
- Premium Lighting Quality: 5CCT adjustable color temperature, TRIAC dimming compatibility, flicker-free performance, and stable 90–140V operation support reliable, professional-grade lighting results.
Package Included
| Wattage & Pack Size | Package Included |
| 12W – 4 Pack | 4 × Deep Anti-Glare LED Downlights 4 × TRIAC Dimmable LED Drivers 1 × User Manual |
| 12W – 12 Pack | 12 × Deep Anti-Glare LED Downlights 12 × TRIAC Dimmable LED Drivers 1 × User Manual |
Order & Logistics
- Lead Time: Usually ships within 1–3 business days from local warehouses. If local inventory is unavailable, fulfillment from HQ within 10–15 business days.
- Packing: Protective cardboard box with individual foam compartments
- Shipping Note: This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
Key Specifications
- Wattage: 12W
- Voltage: 90–140V AC
- Beam Angle: 24°
- Color Temperature: 5CCT Adjustable (2700K–5000K)
- CRI: >97 Full Spectrum
- Housing: White aluminum housing with black anti-glare reflector
- Dimming: Compatible with TRIAC dimmers (10–100%)
- Mounting Type: Recessed ceiling mount
- Lifespan: 50,000 hours
Technical Specifications
| Item | Specification |
| Product Name | CDG-US Curved Reflector Deep Anti-Glare Full Spectrum LED Downlight |
| Wattage (Cut-out Size) | 12W (3″) |
| Housing | White aluminum housing with black anti-glare reflector |
| Optical Structure | Curved inner-wall reflector cup; Deep anti-glare design |
| Light Source Type | Full-spectrum COB, 5CCT Adjustable |
| Beam Angle | 24° |
| Cutout Size | Ø75 mm (3″) |
| Product Size | D80 × H73.5 mm |
| Input Voltage | AC 90–140V |
| Dimmable | TRIAC dimmable |
| Color Temperature | 5CCT selectable, 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | >97 |
| Luminous Efficiency | 70 lm/W |

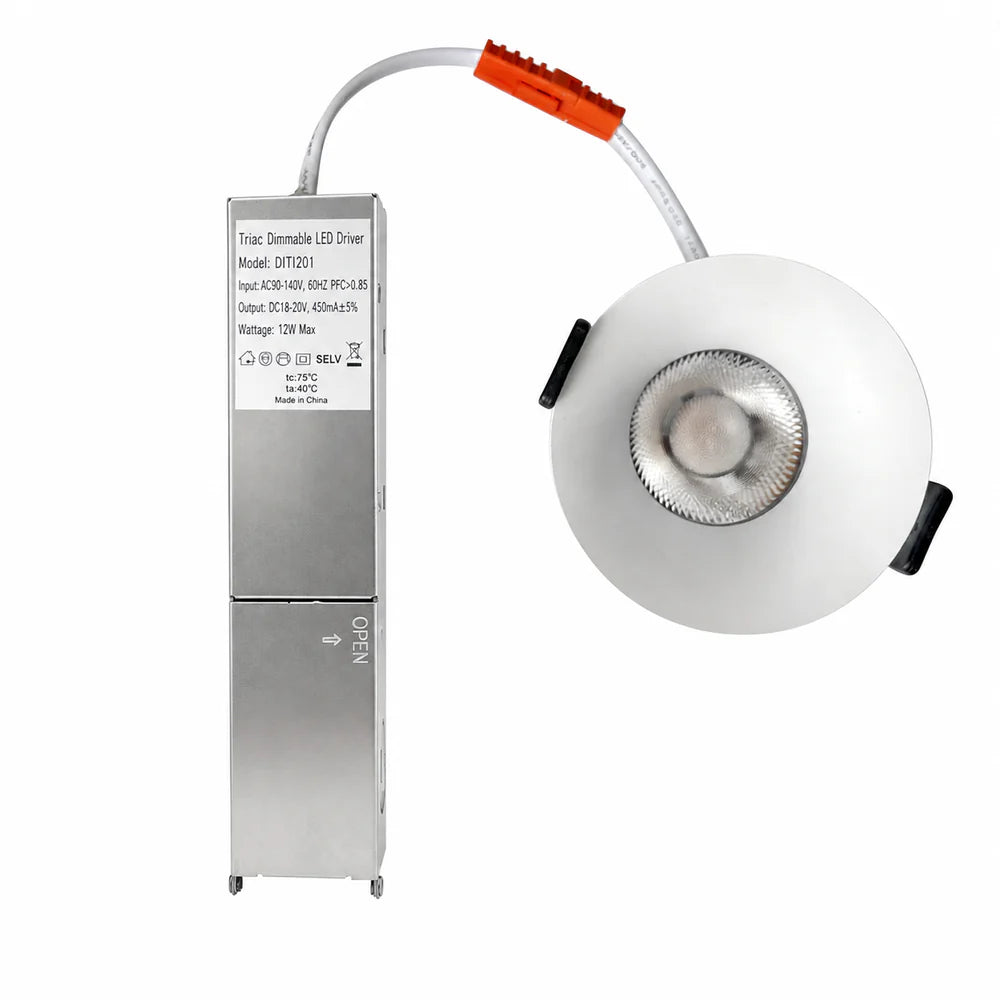

| Driver / Power Supply | Metal housing driver; TRIAC dimmable; 5CCT DIP-switch driver |
| Flicker | Flicker-free |
| Low Blue Light | Low blue light |
| Installation Type | Recessed ceiling mount |
| Application | Full spectrum lighting; Deep anti-glare accent lighting |
| Use Environment | Indoor use only |
Usage Notes / Installation Tips
- Ensure power supply is disconnected before installation or wiring adjustment
- Confirm 3″ cut-out size and ceiling depth before mounting
- Choose appropriate color temperature using the 5CCT switch before installation
- Use with compatible TRIAC dimmers for optimal dimming performance
- Recommended for dry and damp locations; avoid direct water exposure
Applications
- Commercial: retail stores, showrooms, galleries, and offices
- Hospitality: hotels, restaurants, cafes, and reception halls
- Residential: living rooms, kitchens, hallways, and staircases
- Architectural & Accent Lighting: focused illumination with glare control
